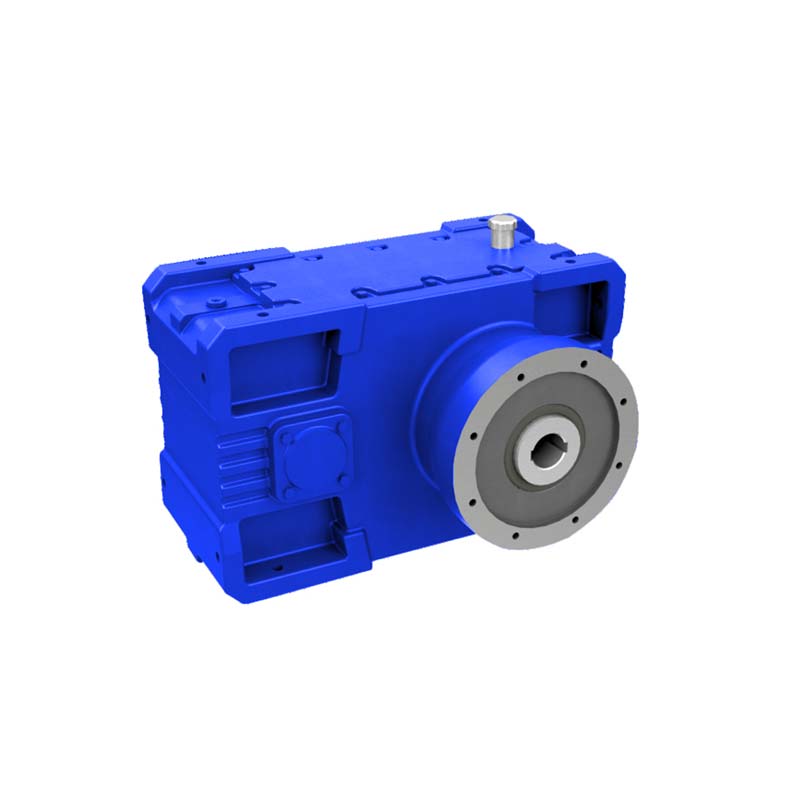

An Extruder Gearbox is the driving heart of an extrusion machine, designed to transmit high torque and power from the motor to the screw shaft that processes materials such as plastics, rubber, and composites. It ensures precise torque transfer, smooth operation, and reliable performance under extreme conditions of heat, pressure, and continuous workload.
In modern extrusion lines—whether for film, sheet, profile, or pipe production—the gearbox determines overall machine efficiency, product consistency, and energy consumption. With the rise of high-speed extrusion and energy-efficient systems, the demand for advanced, durable, and precision-engineered gearboxes has never been higher.
Extruder Gearboxes are not just mechanical components; they are the core link between drive systems and material transformation. Their role in ensuring synchronization, mechanical stability, and torque control directly influences the final product’s dimensional accuracy and quality.
The working principle of an Extruder Gearbox revolves around converting motor power into a high-torque, low-speed output that efficiently drives the extruder screw. The gearbox manages massive stress loads while maintaining alignment and minimizing vibration.
Core Functional Mechanisms:
Power Transmission: Converts the motor’s high-speed rotation into a lower-speed, high-torque output optimized for screw operation.
Load Distribution: Uses helical and hardened gears to distribute stress evenly, extending lifespan and stability.
Thermal Management: Integrated lubrication and cooling systems reduce friction and heat buildup.
Precision Alignment: Ensures coaxial alignment between motor and extruder screw for vibration-free performance.
Noise Control: Advanced tooth geometry reduces operational noise levels, critical for production environments.
To illustrate the technical excellence of a well-designed gearbox, below is a specification overview for an industrial-grade Extruder Gearbox used in polymer extrusion applications:
| Parameter | Specification Range | Description |
|---|---|---|
| Torque Output | 20,000 – 500,000 Nm | Suitable for single and twin-screw extruders |
| Gear Ratio | 8:1 – 20:1 | Optimized for controlled extrusion speed |
| Power Input | Up to 900 kW | Compatible with high-performance drive motors |
| Cooling System | Oil lubrication with water-cooled circuit | Maintains optimal thermal balance |
| Gear Type | Helical / Hardened alloy steel | High durability, low noise |
| Mounting Type | Horizontal / Vertical | Adaptable to production layout |
| Bearing System | Heavy-duty thrust bearings | Handles high axial loads efficiently |
| Casing Material | Ductile cast iron or alloy steel | Enhances rigidity and corrosion resistance |
| Efficiency | ≥95% | Ensures minimal energy loss |
| Maintenance Interval | 5,000 operating hours | Easy inspection and oil replacement cycle |
The importance of the Extruder Gearbox lies in its ability to balance power efficiency, precision, and longevity. It’s not just a transmission component—it’s a system optimization enabler.
1. Enhanced Power Density
Modern Extruder Gearboxes achieve higher torque output within compact housing. This improves installation flexibility and machine footprint while maintaining robust performance.
2. Extended Service Life
Precision-engineered gears, high-quality bearings, and superior lubrication systems ensure durability, minimizing downtime and maintenance costs.
3. Energy Savings Through Efficiency
With efficiency rates above 95%, less power is wasted as heat. This translates directly to cost savings and improved environmental sustainability.
4. Noise and Vibration Reduction
Advanced gear geometry and alignment minimize noise levels, which is crucial for high-speed production environments and operator safety.
5. Adaptability Across Industries
Extruder Gearboxes are utilized in various sectors, including:
Plastic and polymer extrusion
Rubber and silicone processing
Food and pharmaceutical extrusion
Recycling and compounding lines
6. Smart Monitoring Integration
Next-generation gearboxes include sensors for torque, vibration, and temperature, allowing real-time monitoring and predictive maintenance—critical for Industry 4.0 automation environments.
As industries continue to demand more efficient and environmentally responsible production, the gearbox’s role becomes even more central to achieving performance and sustainability targets.
The future of Extruder Gearbox technology lies in digital integration, material innovation, and smart manufacturing. Manufacturers are embracing advanced simulation tools, intelligent condition monitoring, and lightweight materials to redefine gearbox performance.
1. Smart Diagnostics and IoT Integration
Modern gearboxes are being fitted with smart sensors that record torque, temperature, and vibration data in real-time. This predictive maintenance approach prevents unplanned downtime and extends service life.
2. High-Efficiency Materials and Coatings
Gear manufacturers are adopting carburized alloy steels and advanced coatings to minimize friction losses and enhance corrosion resistance—especially in high-humidity or abrasive polymer processing environments.
3. Compact Modular Design
Extruder Gearboxes are evolving toward modular, compact structures that make them easier to integrate into automated systems and retrofit older equipment.
4. Sustainable Manufacturing
Energy-efficient gear geometry and eco-friendly lubricants contribute to sustainable production lines, aligning with modern ESG (Environmental, Social, Governance) goals.
5. Custom Engineering for Industry-Specific Applications
Tailored solutions are increasingly common—for example, co-rotating twin-screw gearboxes for polymer compounding or counter-rotating systems for PVC profile extrusion.
These innovations are driving higher precision, reduced noise, and lower carbon emissions, establishing a new standard for extrusion efficiency worldwide.
Q1: What is the most important factor when selecting an Extruder Gearbox for industrial use?
A1: The most critical factor is torque capacity—the gearbox must handle the extrusion system’s maximum load without failure. Secondary considerations include gear ratio, bearing design, lubrication type, and compatibility with motor power. A gearbox optimized for the correct torque and speed range will maximize output and reduce maintenance costs.
Q2: How often should an Extruder Gearbox be maintained or inspected?
A2: Regular inspection should occur every 2,000 to 3,000 operating hours, focusing on oil levels, bearing temperature, and vibration. A complete maintenance cycle—including oil replacement, filter cleaning, and alignment checks—should be conducted approximately every 5,000 hours. Preventive maintenance greatly reduces the risk of gear wear and unplanned machine downtime.
HEMU has established itself as a global supplier of advanced Extruder Gearboxes, combining innovation, reliability, and customized engineering. Each gearbox is designed with premium materials, precision machining, and strict quality control standards that meet international certifications.
Key advantages of HEMU’s gearbox technology include:
Exceptional torque transmission efficiency for heavy-duty applications
Quiet and vibration-free operation due to optimized gear geometry
Superior heat dissipation and lubrication systems for continuous operation
Modular customization for different extrusion setups and screw types
Proven performance in global plastic and rubber manufacturing lines
HEMU continues to invest in R&D, digital diagnostics, and smart manufacturing technologies to enhance gearbox durability and sustainability. Its mission is to help manufacturers achieve maximum productivity with minimal energy waste—aligning with the evolving needs of modern extrusion industries.
For more details about product specifications, customization options, or technical consultation on Extruder Gearboxes, contact us to explore how HEMU can deliver performance-driven solutions tailored to your production goals.
