The parallel-shaft gearmotors of the series F..DR.. are perfect for all your design-related applications where you rely on space-saving components. They provide optimum installation conditions thanks to their slim design.

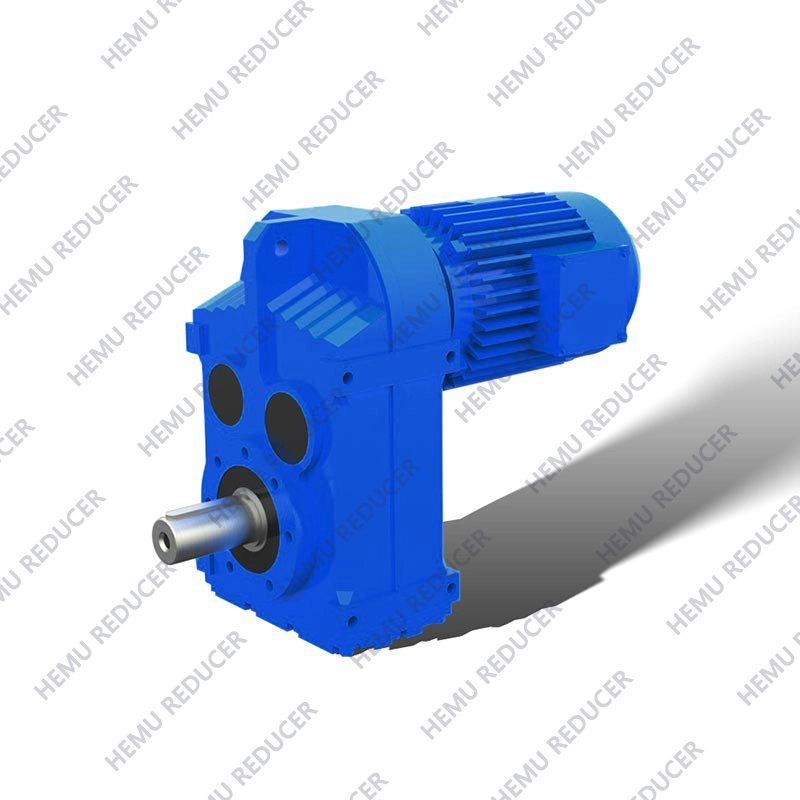

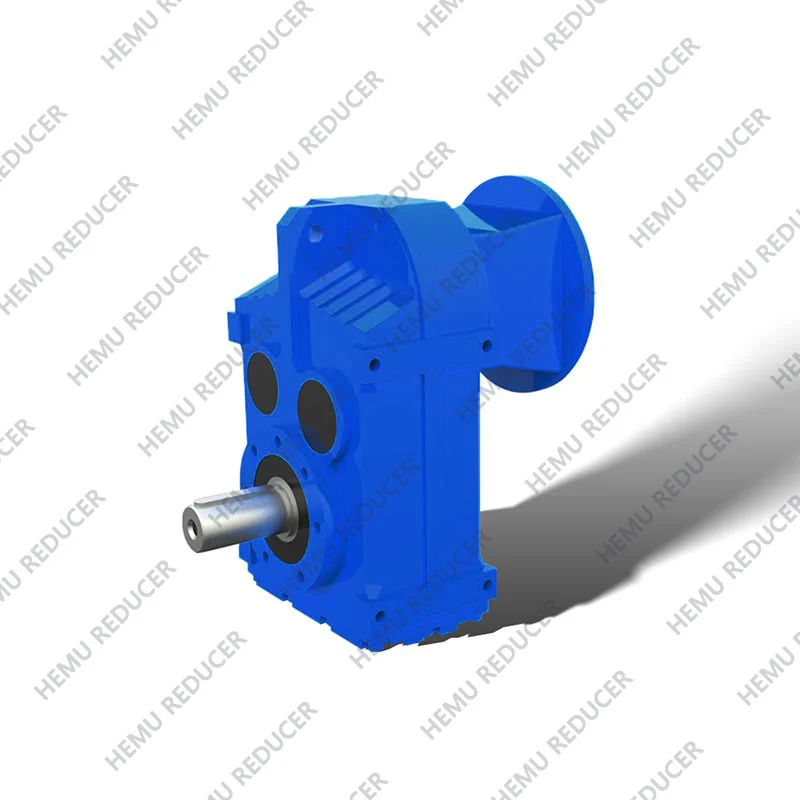

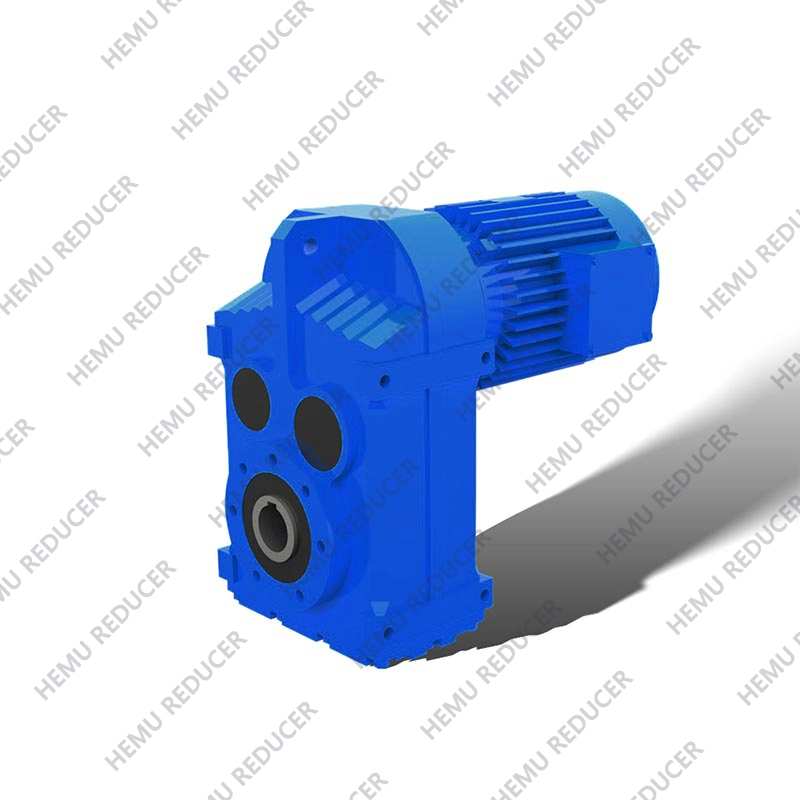

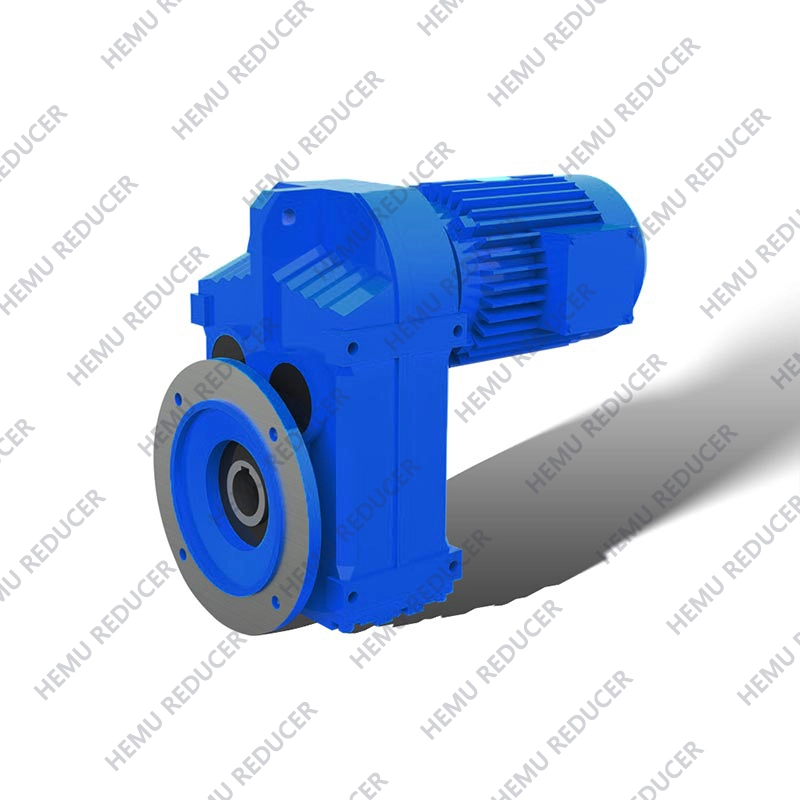

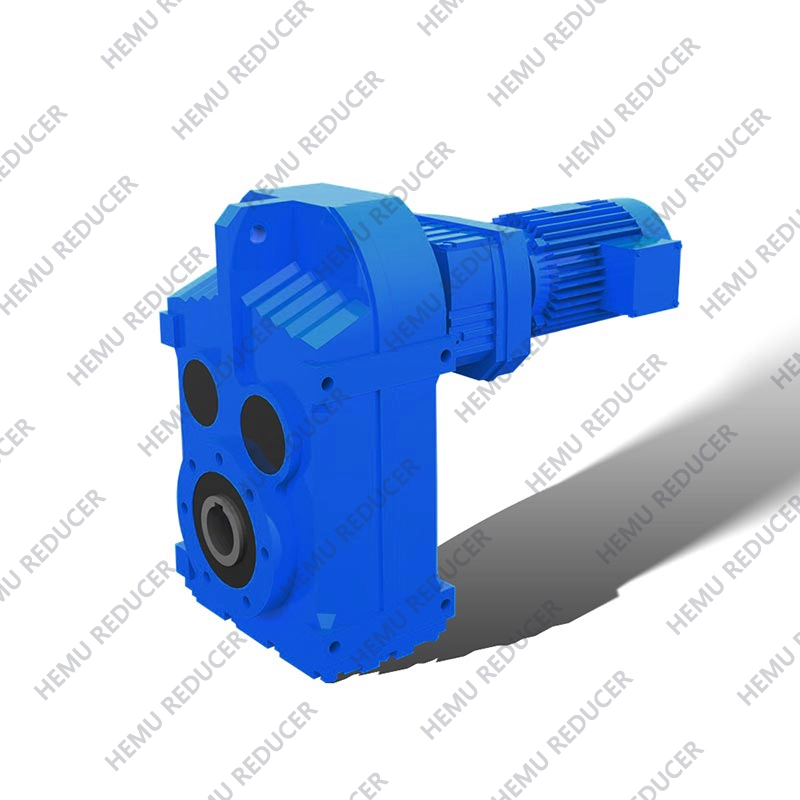

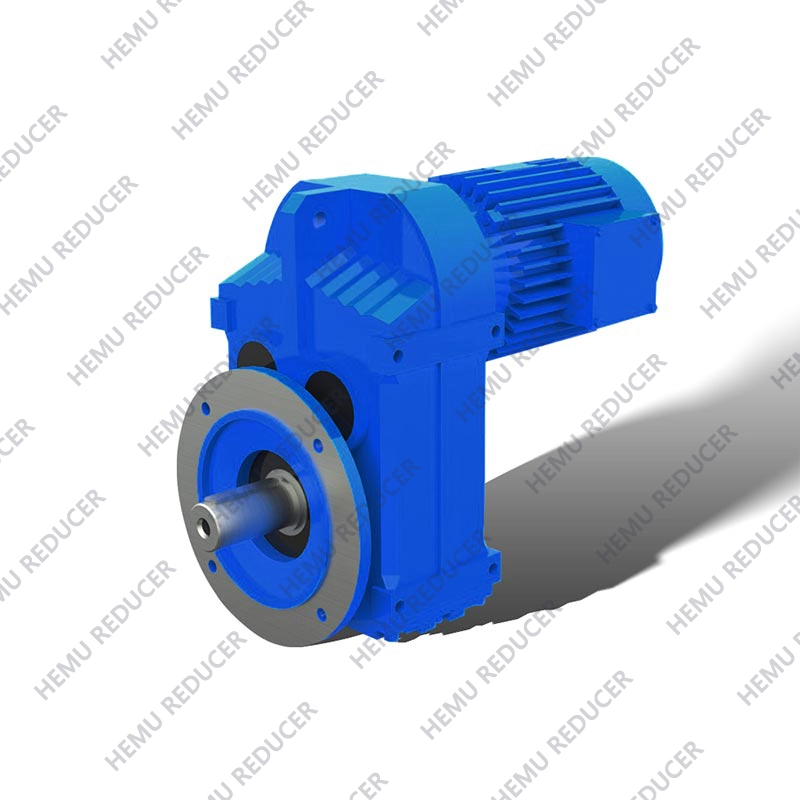

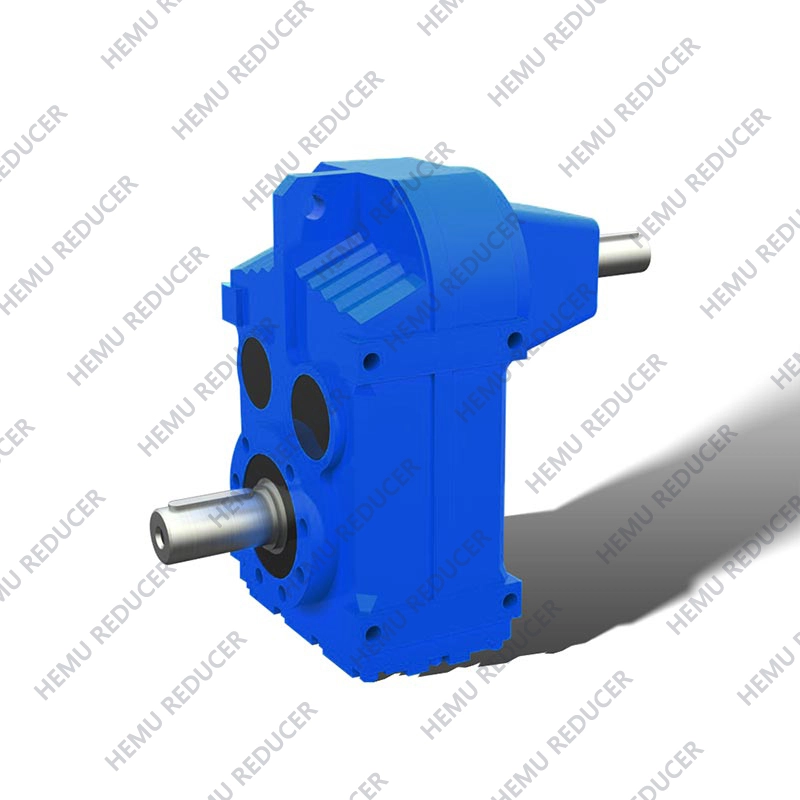

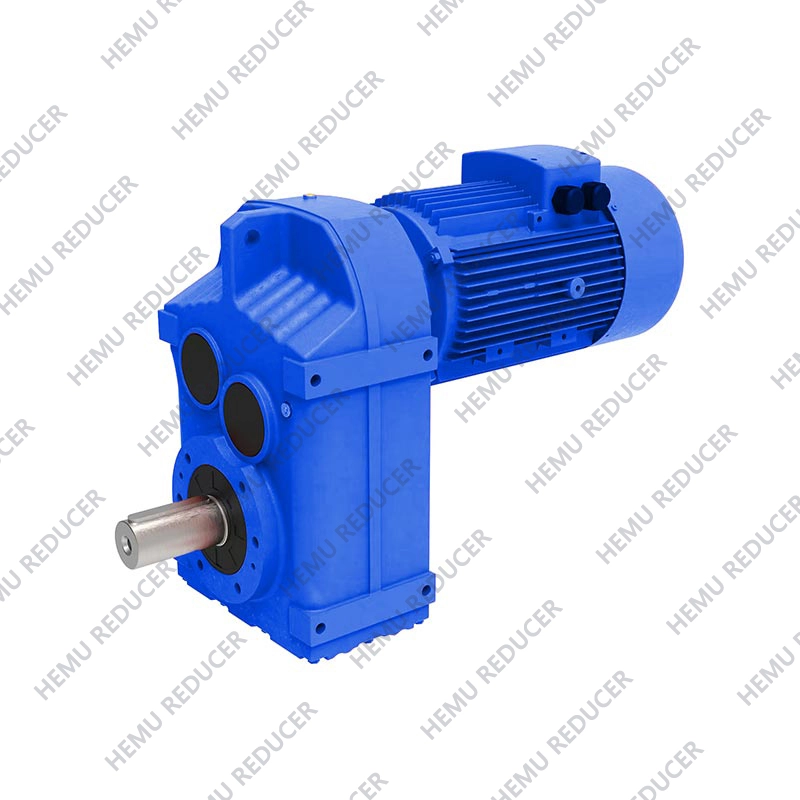

HF Series Parallel Shaft Helical Gear Motor are a common type of gearbox and are suitable for many transmission applications. Its main characteristic is that the input and output shafts are parallel and in the same direction. In addition, parallel shaft gearbox also has the following characteristics:
1. can withstand large torque and load, high transmission efficiency.
2. because of the simple structure, maintenance and repair is more convenient.
3. strong flexibility, can adapt to a variety of different input and output speed and torque requirements.
HF Series Parallel Shaft Helical Gear Motor are widely used in machine tools, cranes, conveyors, engineering machinery, automated production lines and other fields.
1. High modular design
2. High loading support, stable transmitting and low noise
level.
3. Excellent sealing, wide range of industry
application.
4. High efficiency and save power.
5. Save cost and low maintenance.
1. Harbor and shipping
2. Hoist and transport
3. Electric power
4. Coal mining
5. Cement and construction
6. Paper and light industry
7. Chemical industry and environmental protection.Etc.

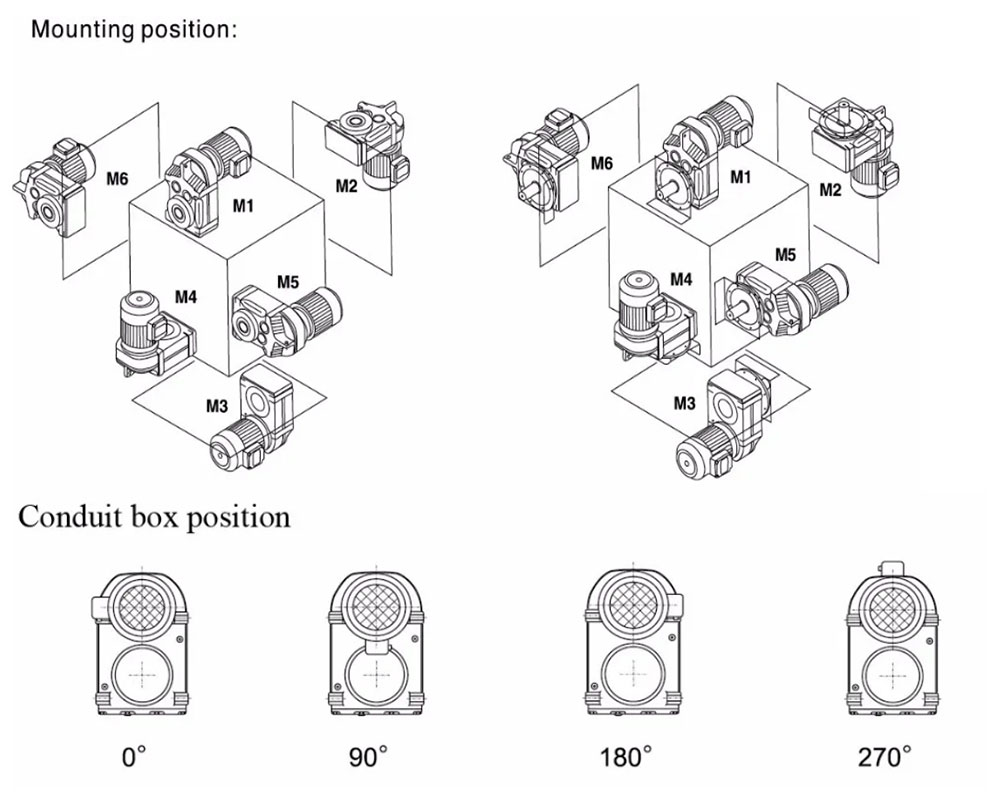

| Housing material | Cast iron/Ductile iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | Accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | Tempering, cementiting, quenching, etc. |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Noise (MAX) | 60~68dB |
| Temp. Rise (MAX) | 40°C |
| Temp. Rise (Oil)(MAX) | 50°C |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
| Brand of bearings | China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK. |
| Brand of oil seal | NAK --- Taiwan or other brands requested |
| Size |
Solid Shaft Dia. (mm) |
Hollow Shaft Dia. (mm) |
Center Height (mm) |
Output Flange Dia. (mm) |
Power (kw) |
Ratio |
Permissible Torque (n.m) |
Weight (kgs) |
| 37 | φ25k6 | φ30h7 | 76 | φ110/160 | 0.18-3.0 | 3.81-128.51 | 200 | 13 |
| 47 | φ30k6 | φ35h7 | 77 | φ120/200 | 0.18-3.0 | 5.06-189.39 | 400 | 18 |
| 57 | φ35k6 | φ40h7 | 93 | φ155/250 | 0.18-5.5 | 5.18-199.70 | 600 | 34 |
| 67 | φ40k6 | φ40h7 | 97 | φ155/250 | 0.18-5.5 | 4.21-228.91 | 820 | 55 |
| 77 | φ50k6 | φ50h7 | 121 | φ170/300 | 0.37-11.0 | 4.30-281.71 | 1500 | 90 |
| 87 | φ60m6 | φ60h7 | 152 | φ215/350 | 0.75-22.0 | 4.12-270.68 | 3000 | 150 |
| 97 | φ70m6 | φ70h7 | 178 | φ260/450 | 1.1-30.0 | 4.68-280.76 | 4300 | 260 |
| 107 | φ90m6 | φ90h7 | 200 | φ304/450 | 2.2-45.0 | 6.20-254.40 | 7840 | 402 |
| 127 | φ110m6 | φ100h7 | 236 | φ350/550 | 7.5-90.0 | 4.63-172.17 | 12000 | 700 |
| 157 | φ120m6 | φ120h7 | 286 | φ400/660 | 11.0-200.0 | 11.92-267.43 | 18000 | 950 |
