NMRV Series Worm Gear Reducer

NMRV Series Worm Gear Reducer

NMRV and NMRV POWER worm gear reducers currently represent the most advanced solution to market requirements in terms of efficiency and flexibility. The new NMRV Power series, also available as compact integral helical/worm option, has been designed with a view to modularity: low number of basic models can be applied to a wide range of power ratings guaranteeing top performance and reduction ratios from 5 to 1000.

NMRV series worm gear reducer has the following main features: high-quality aluminum alloy casting, light weight, corrosion and oxidation resistance, no rust; high output torque; smooth transmission, low noise, suitable for long-term continuous work in harsh environments; high efficiency of heat dissipation; beautiful and durable, small size; can be adapted to all-round installation.

Advantages:

1.High modular design
2.High loading support, stable transmitting and low noise level.
3.Excellent sealing, wide range of industry application.
4.High efficiency and save power.
5.Save cost and low maintenance.

NMRV Series Worm Gear Reducer:

1. Housing:

Die-cast Aluminium Alloy Gearbox (RV025~RV090)Cast Iron Gearbox (RV110~RV150)

2. Worm Wheel:

Wearable Tin Bronze Alloy, Aluminum Bronze Alloy

3. Worm Shaft:

20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding

4. Input Configurations:

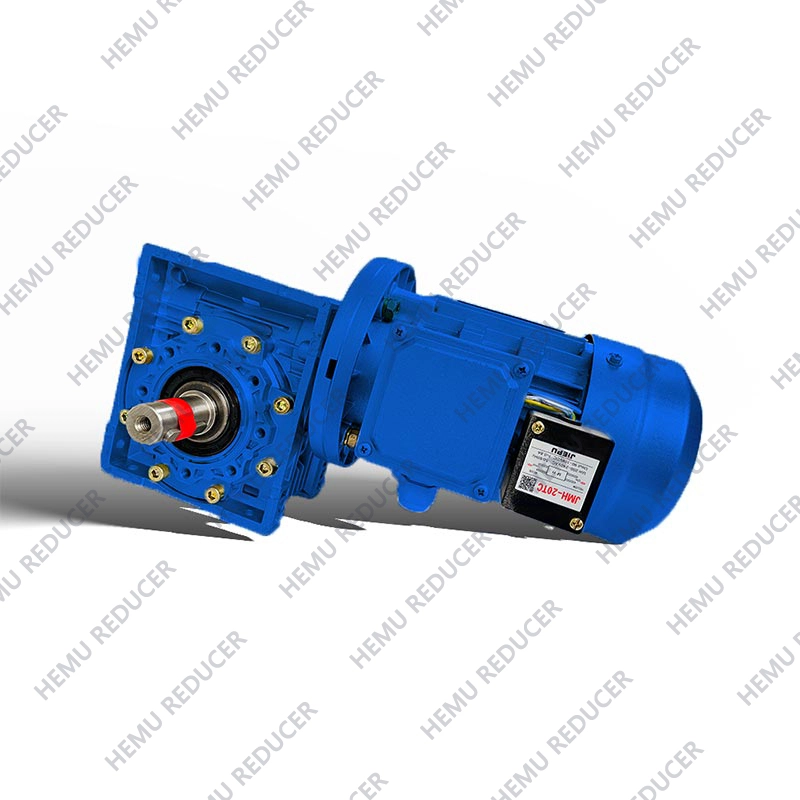

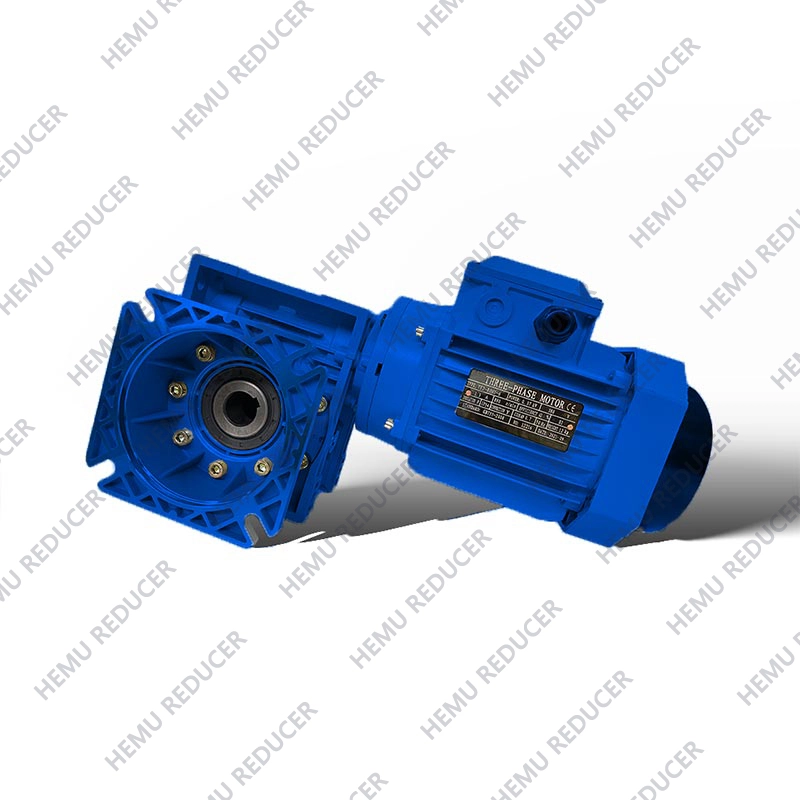

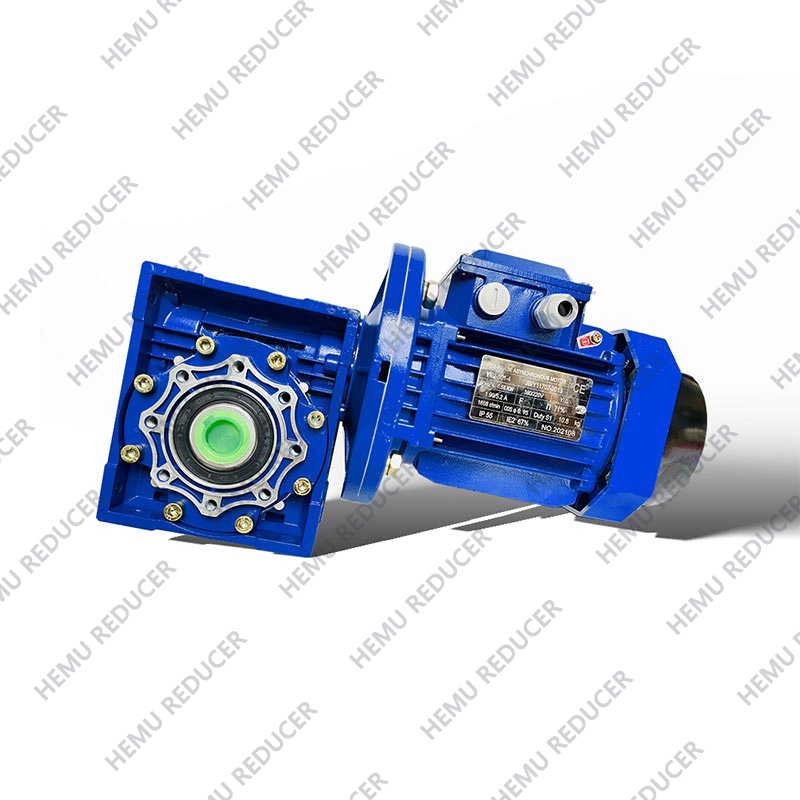

Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)
IEC-normalized Motor Flange
Solid Shaft Input
Worm Shaft Tail Extension Input

5. Output Configurations:

Keyed Hollow Shaft Output

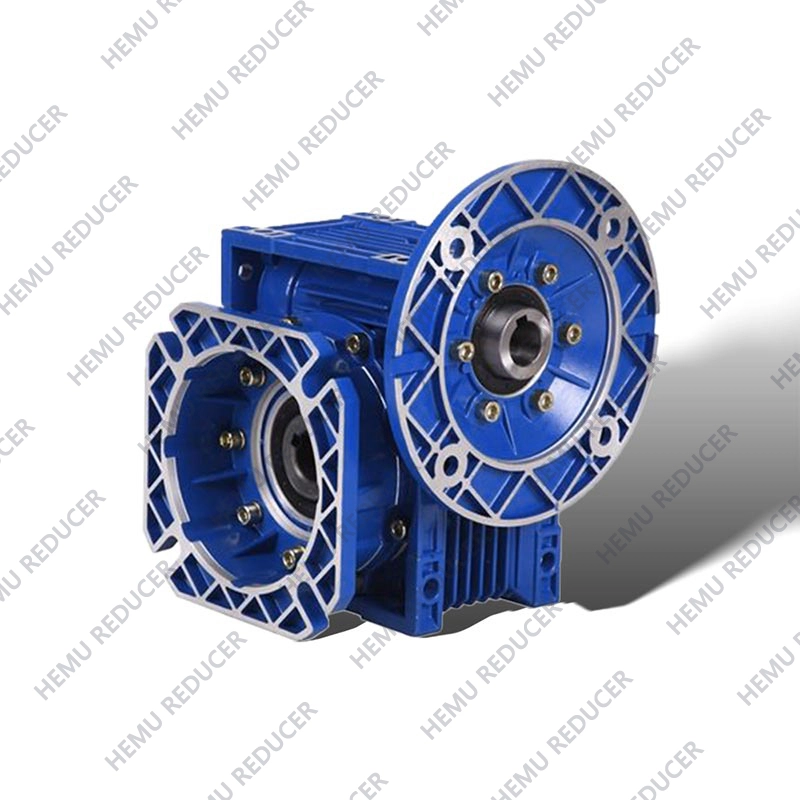

Hollow Shaft with Output Flange
Plug-in Solid Shaft Output

6. Spare Parts:

Worm Shaft Tail Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover

7. Gearbox Painting:

Aluminium Alloy Gearbox:
After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey
Cast Iron Gearbox:
After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue

NMRV Series Worm Gear Reducer Models:

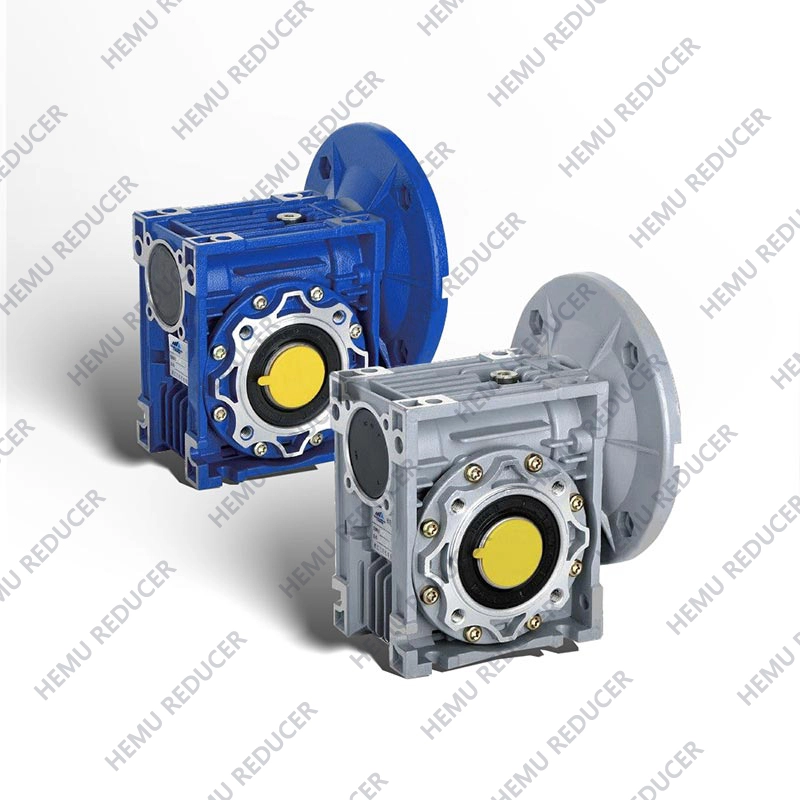

Hollow Shaft Input with IEC-normalized Motor Flange
RV025~RV150

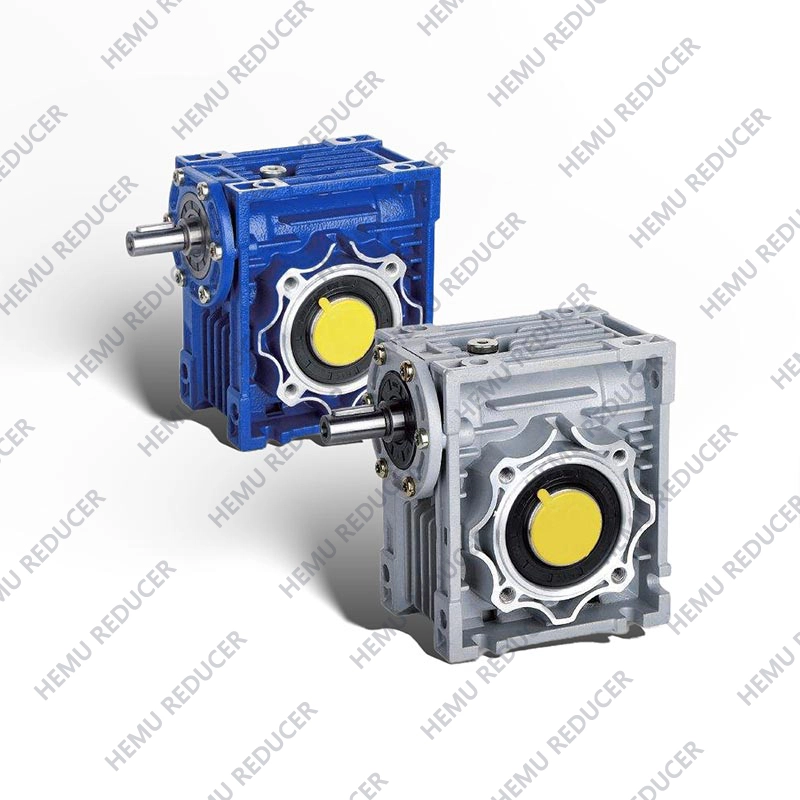

Solid Shaft Input
RV025~RV150

Features:

1. Quality aluminum alloy gear box, light weight and not rust
2. 2 optional worm wheel materials: Tin bronze or aluminum bronze alloy
3. Standard parts and very flexible for shaft configurations and motor flange interface
4. Several optional mounting options
5. Low noise, High efficiency in heat dissipation

Technical Data:

Ratio:

5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100

Installation:

Flange Mounted
Foot Mounted
Torque Arm Mounted

Lubrication:

Grease Lubrication
Oil-bath and Splash Lubrication

Cooling:

Natural Cooling
