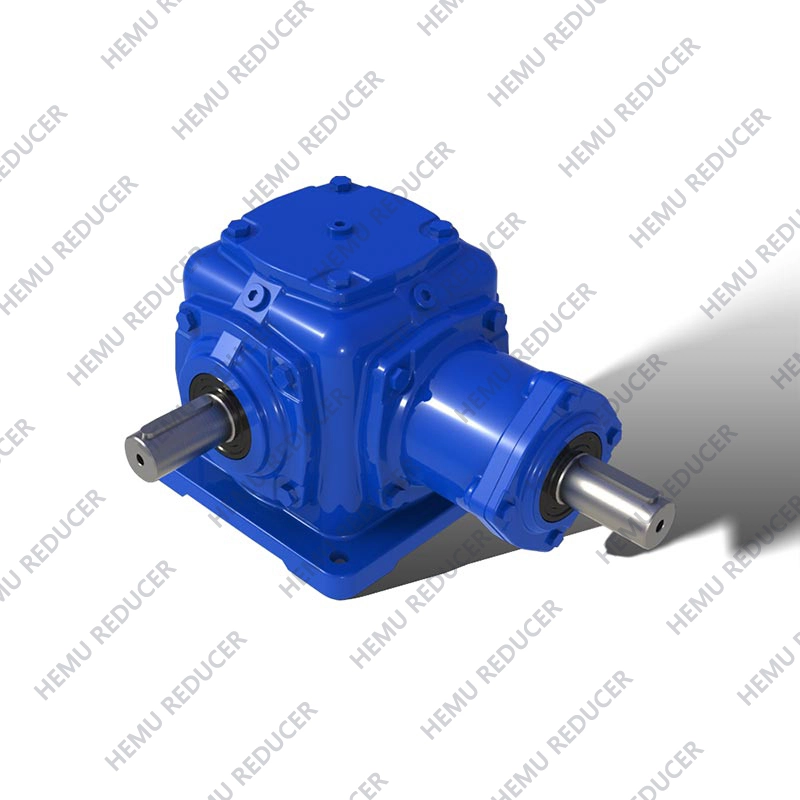

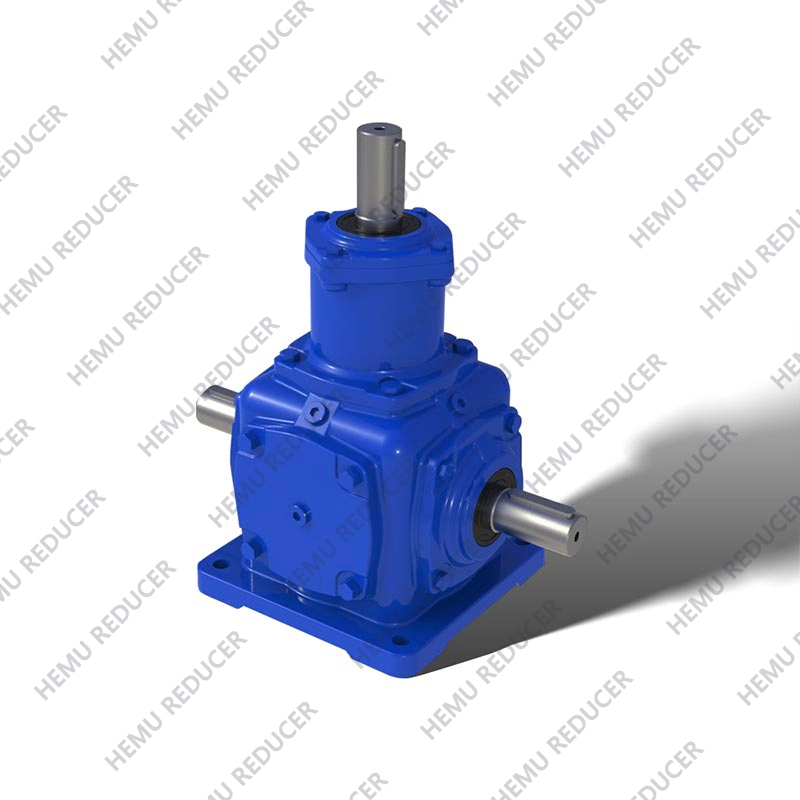

T-shaft gearbox has three shafts: the input and the output shaft extending out both sides of the housing. It is typically used in rear engine gear reducers. The input and output shafts are 90 degrees to each other.
1. casing: casting with high steel FC-25 cast iron
2. Gear: Adopting high quality and high purity alloy steel 50CrMnT modulation processing, through the carburizing quenching treatment and grinding and become.
3. Spindles: made of high quality high purity alloy steel 40Cr modulated processing, with high suspended heavy load capacity.
4. Bearing: equipped with heavy-duty tapered roller bearings. 5;
5. oil seals: imported double-lip oil seals, with high dust and oil leakage prevention capability.
1. Standard and various, ratio 1:1,1.5:1,2:1,3:1, all are exact ratio.
2. When the ratio is not 1:1 and pinion shaft is input, so cross shaft is
reduced output.
3. When cross shaft is input, the pinion shaft is increased output.
4. Spiral bevel gear, stable transmission, low noise level, small vibration
and strong loading capacity.
5. Double input shaft is available.
6. Multiple output shaft is available.
7. Any mounting position is available.

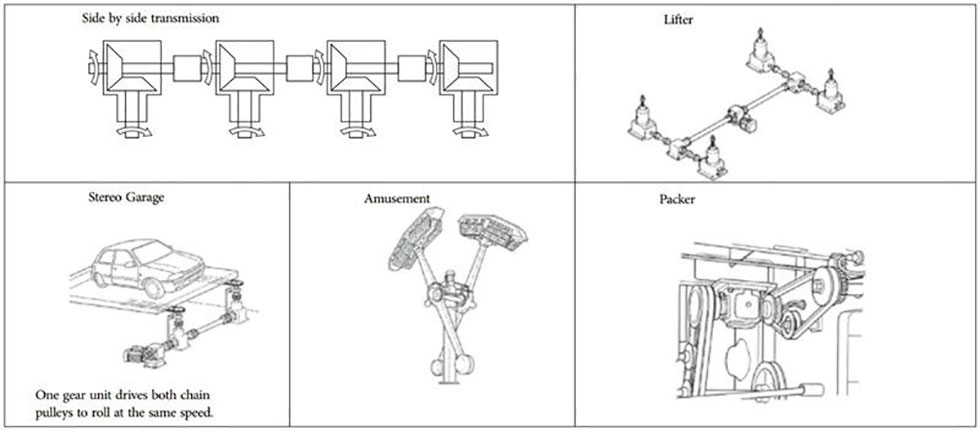

1. Agriculture and food
2. Building and construction
3. Forest and paper
4. Metal processing
5. Chemical industry and environmental protection
| Housing material | Cast iron/Ductile iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | Accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | Tempering, cementiting, quenching, etc. |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Noise (MAX) | 60~68dB |
| Temp. Rise (MAX) | 40°C |
| Temp. Rise (Oil)(MAX) | 50°C |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
| Brand of bearings | China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK. |
| Brand of oil seal | NAK --- Taiwan or other brands requested |
