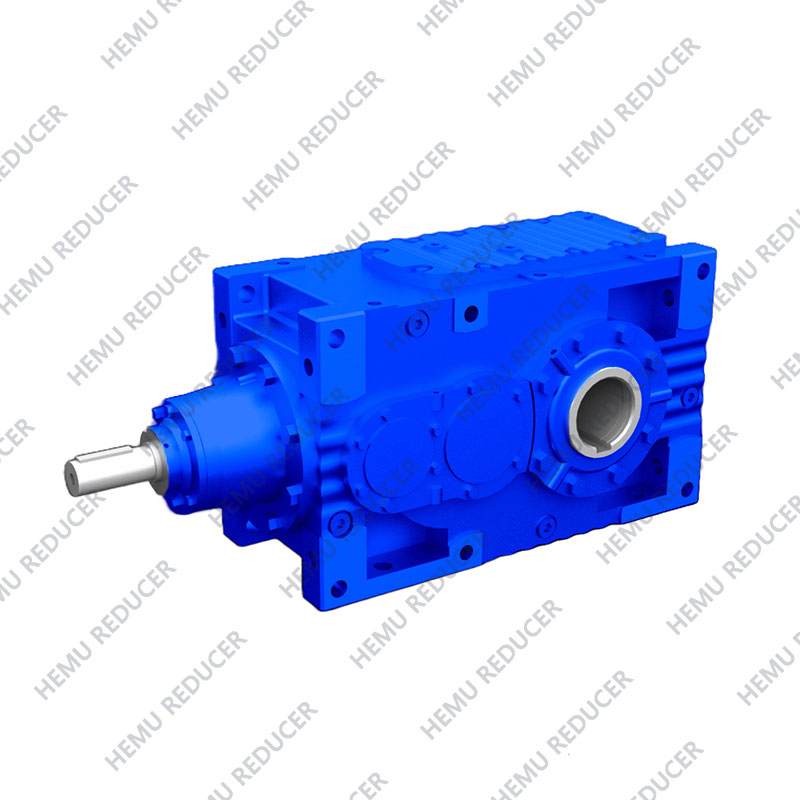

MC Series Industrial Gear Units

MC Series Industrial Gear Units utilize high quality alloy steel gears that are hardened and precision ground to ensure high torque transmission. Optimized case structure enhances rigidity for shock loads and continuous operation. Low friction bearings and optimized lubrication system reduce energy loss.

Components:

1. Housing:
Casting Iron Box
2. Gears:
Hardened Helical Gears (MC.P Series Parallel Shaft Gearbox)
Hardened Helical Bevel Gears (MC.R Series Right Angle Gearbox)
3. Shafts:
Parallel Shafts (MC.P Series)
Orthogonal Shafts (MC.R Series)
Output Shaft: Solid Shaft, Hollow Shaft
4. Modular Accessories:
Shrink Disk, Mounting Flange, Motor Flange, Cooling Fan, Torque Arm, Double Input Shaft

Models:

Total 8 Model Sizes: MC02 ~ MC09

Features:

1. Optional mounted by any one side of six sides.
2. MC Series Industrial Gear Units Compact structure, light weight.
3. MC Series Industrial Gear Units Rigid welded box structure, heavy duty and high load capacity.
4. Modular scheme and design for special conditions, adapting to the diverse needs.
5. 2 stage or 3 stage drive gearbox.

Parameters:

Applications:

MC Series Industrial Gear Units are often used in the Crushing, Mixing, Building Materials, Lifting, Bulk Material Handling, Chemical, Food Processing, Wood, Paper, and Environmental Protection Industries.

Installation:

Mounting Type: Horizontal Mounting, Vertical Mounting, Upright Mounting
Installation Method: Foot Mounted, Torque Arm Mounted

Lubrication:

Selecting the appropriate lubrication method according to the lubricating oil level.
Lubrication method:
Splash lubrication - Low oil level (Horizontal Mounting)
Immersion lubrication - High oil level (Vertical Mounting, Upright Mounting)
