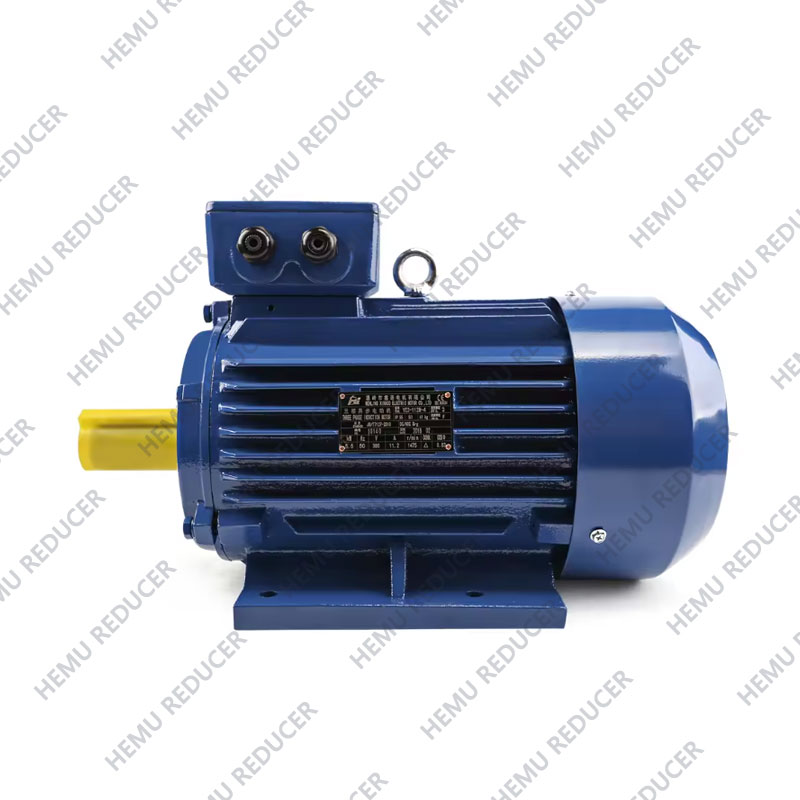

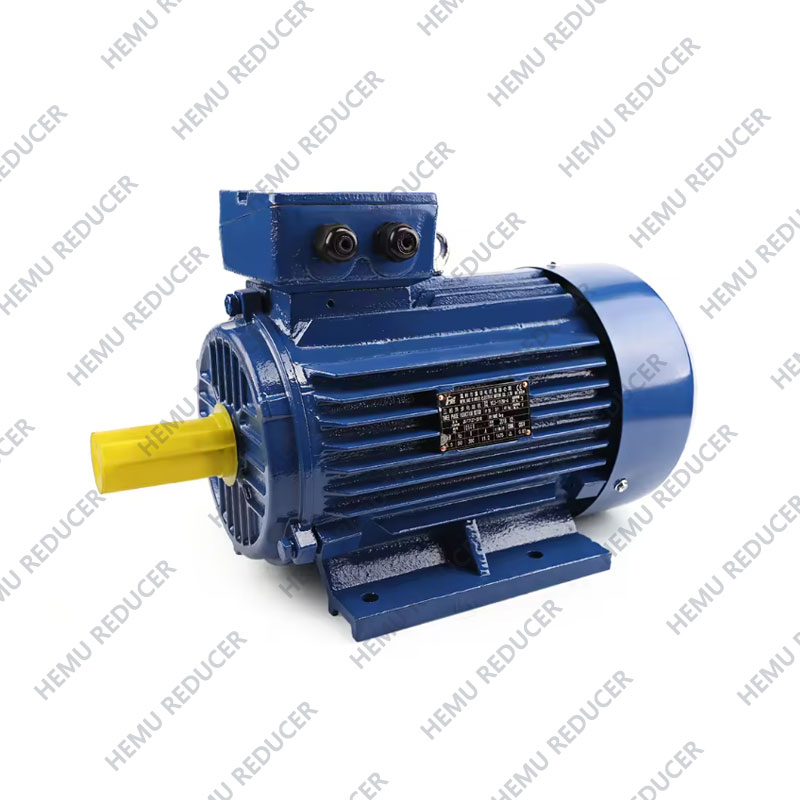

YE3 3 phase asynchronous induction AC electric motor is for general use low voltage cage type three phase induction motors with single speed, totally enclosed fan cooled and continuous working duty. YE3 3 phase asynchronous induction AC electric motor are suitable for situations without special requirements. They can drive all kinds of general mechanical equipment and widely applied to machine tool, fan blower, compressor, transporter, conveyor, mixer, printing machine, agriculture machine and packing machine.
1. Inverter Duty Rated: 2:1CT & 10:1VT at 380V 50 Hz
2. Protection Degree: IP55
3. Enclosure: TEFC
4. High lock rotor torque
5. VPI process applied for best electrical performance
6. IEC132 frame and larger suitable for Y/Delta starting
7. Nameplate rated 380V 50 Hz or 400V 50Hz
8. Oversized ball bearings on both ends for direct coupling
9. Class “F” insulation

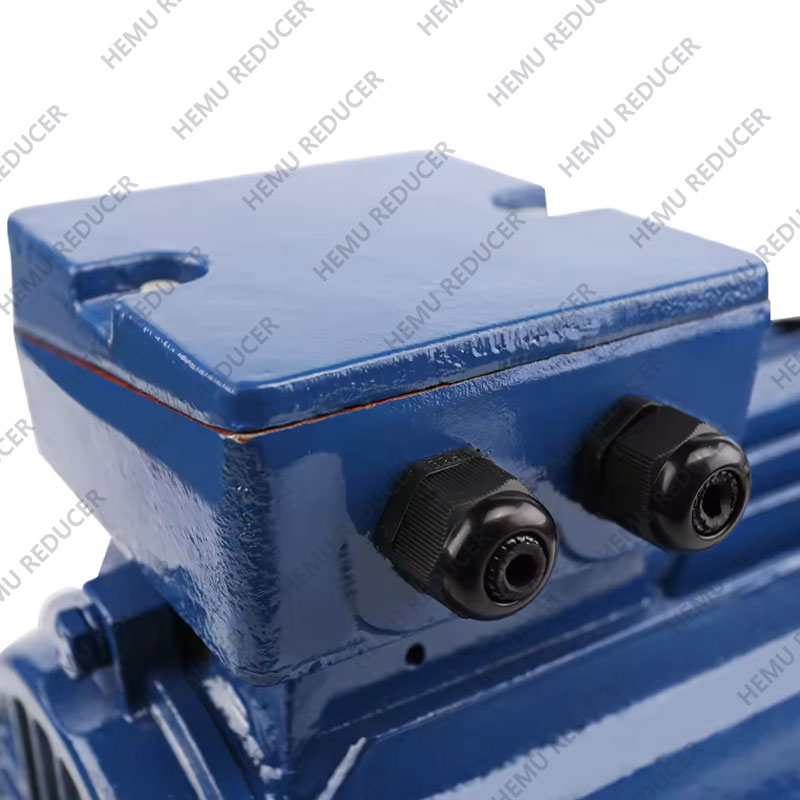

10. Junction box equipped with glands
11. F2 mounting position, F1, F3 is available too
12. Bidirectional fan
13. All motors provided with CE mark
YE3 3 phase asynchronous induction AC electric motor Designed to meet international standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.
| Warranty | 1year |
| Place of Origin | Zhejiang, China |
| Brand Name | HEMU |
| Model Number | YE3 |
| Type | Asynchronous Motor |
| Frequency | 50hz /60hz/50/60hz |
| Phase | Three-phase |
| Protect Feature | Totally Enclosed |
| Efficiency | Ie 3 |
| Product Name | HIGH EFFICIENCY MOTOR |
