ZLYJ reducer is designed for plastic and rubber screw extruding machine with high-precision hard teeth surface.
Material of the reducer is high strength alloy steel. Hardness of teeth surface is HRC54~62.

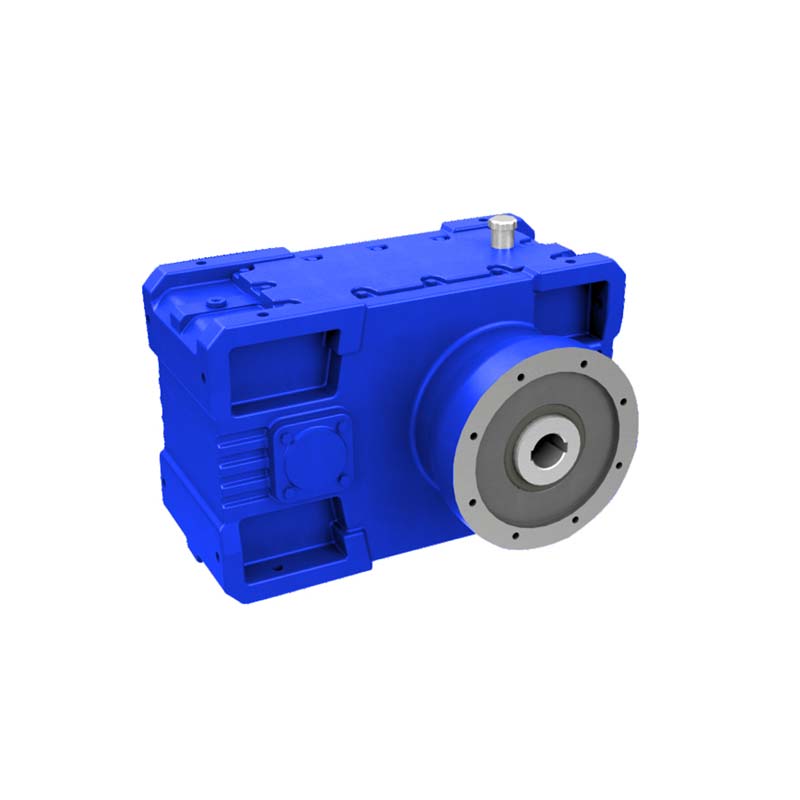

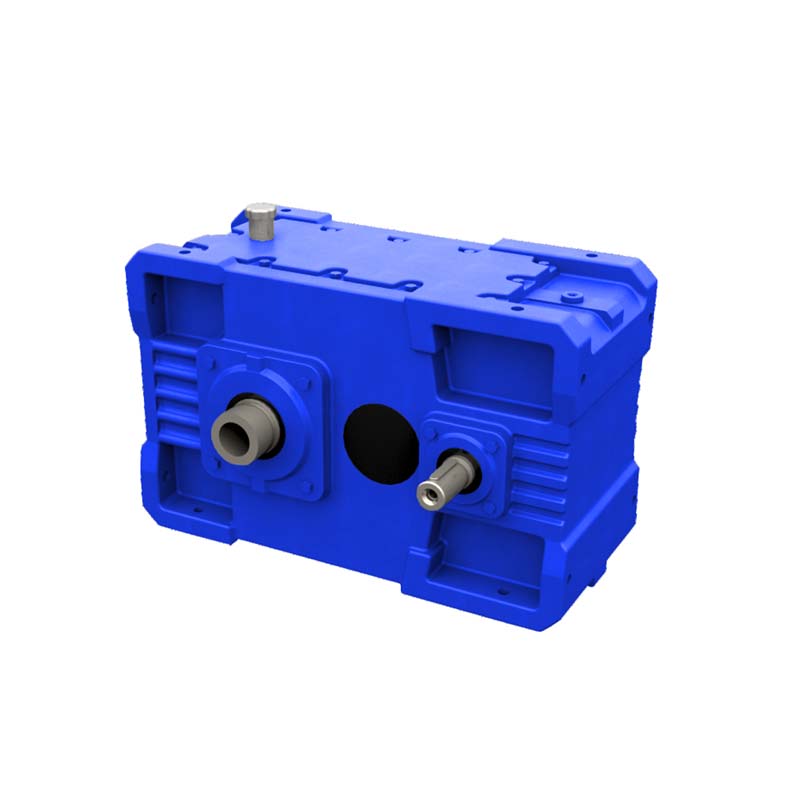

ZLYJ Extruder Gear Box For Single Screw Plastic Extruder is a high-precision hardened gear with thrust seat for plastic screw extruder. It is characterized by the use of high-strength alloy steel for gears and shaft parts. The gears are processed by carburizing, quenching and gear grinding process. The front end of the hollow output shaft is equipped with over-specification thrust bearings to withstand the working axial force of the screw. The main standard parts such as bearings and oil seals are all domestic high-quality products, and can also be equipped with imported products according to the needs of users. The whole machine is characterized by small size, high bearing capacity, smooth transmission, low noise and high efficiency.
Power range:5.5—200KW
Transmission ration range:8—35
Output torque(Kn.m):top to 42
Highly Standard Modular Designed
Quality material ensures the product reliability
High Strength,Compact Dimension
Long Service Life
Low Noise
High Efficiency
Large radial loading ability
Axial load ability of up to 5% of radial load
